MN1000-40-1W-SA 1-way Wall Mount Mini Node

MN1000-40-1W-SA 1-way Wall Mount Mini Node

by QFRF

Business pricing

Sign in to see pricing

Business pricing is visible to signed-in accounts. If you need help faster, request a quote with this product already attached.

Sign in to see pricing Request Quote

New here? Create Account

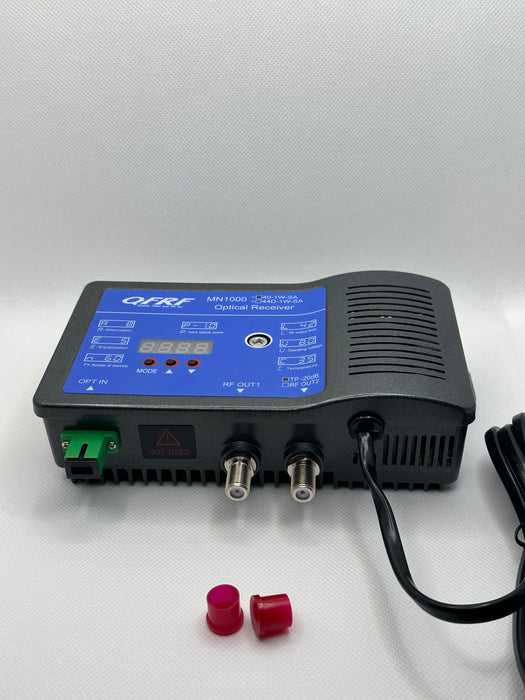

The QFRF MN1000 optical receiver supports CATV and RF-over-fiber distribution in fiber-to-the-building applications. It has an optical input range of -8 to +3 dBm, automatic gain control, and digitally controlled attenuation and equalization. AC power is supplied through an internal power supply. The MN1000-44D-1W-SA model provides two RF outputs through a built-in splitter.

Download Datasheet Download Datasheet

MN1000-40-1W-SA / MN1000-44D-1W-SA

Technical Specifications

Optical input Range (PIN) -8~+3 dBm
AGC Range -9~+2 dBm
Optical Return Loss >45 dB
Optical Receiving Wavelength 1100~1650 nm
Frequency Range 45~1002 MHz
Flatness ±1.0 dB
Return Loss ≥14 dB
ATT Value 0~15 (step 1dB) dB
EQ Value 0~15 (step 1dB) dB
Output Impedance 75 Ω
C/N ≥51 dB
C/CTB ≥60 dB
C/CSO ≥60 dB
Power Voltage 110~120 V
Working Temperature -20~60 ℃
Dimension (L×W×H) 191.3×112.5×52.5 mm
Input Voltage AC 110~120V VAC
Output DC +8V/1.5A V/A
Test Parameters Input power @-1dBm, 128 NTSC channels, OMI=3.5%, RF output level is 46dBmV with 10dB tilt

Technical Resources

Compatibility and Application Examples

Compatibility

Product type: FTTB Optical Receiver.

Optical receiving wavelength: 1100~1650 nm.

Application Examples

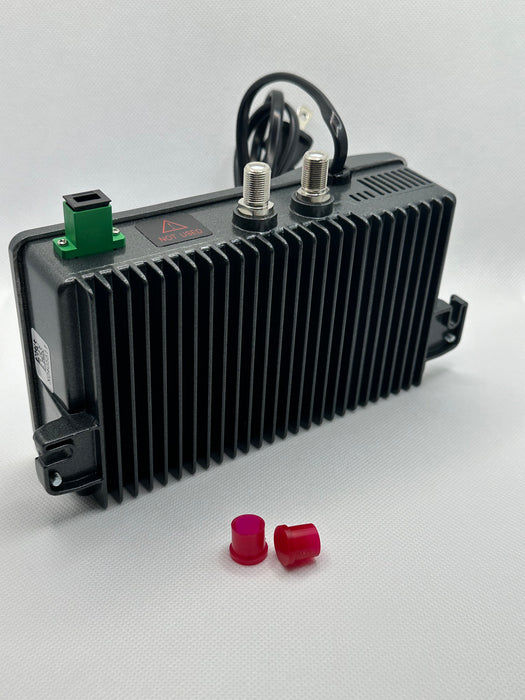

FTTB optical receiver with an integrated aluminum die-casting shell

AGC control -7 +2dBm

Digital control and display of attenuator, equalizer, and RF output level

Optional remote monitor and control of ATT and EQ value

Application Examples

Student Housing Capacity Upgrade

Rutgers University

Reduced truck rolls and improved signal stability during peak occupancy periods.
