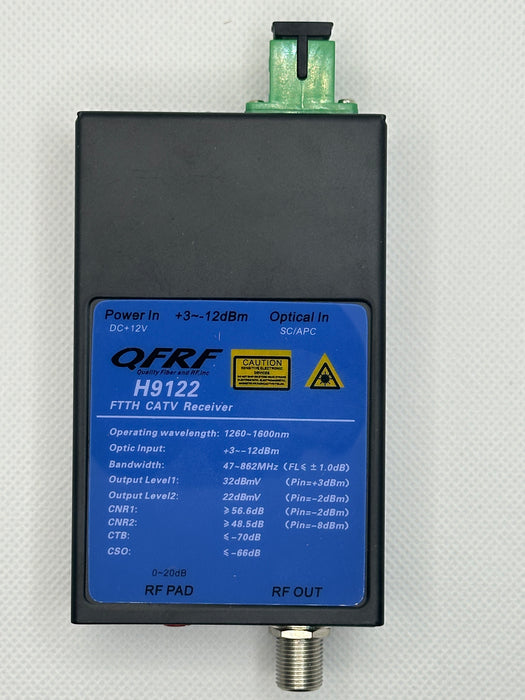

H9122-SA Micro-node
The H9122 Micro-node is a useful asset for fiber techs. With an optical input range of +3 to -12 dBm, it offers a wide 47-870 MHz bandwidth and a noise Pin Diode with preamp for 54dB Carrier-to-Noise performance at 0 dBm/1mw optical input. Dual gain stages and a 20dB RF attenuator allow it to power 1-13 TV sets. The uNode supports 1260-1600nm wavelengths, plus SC/APC or SC/UPC connectors and a metal shell for ESD protection. This tool also features an Optical Input Status LED, flatness/linearity from 47-870 MHz, low power consumption and +12 VDC power options.
Download Datasheet
